The leading IC Engine Thermal Engineering Equipment Manufacturers is Elshaddai Engineering Equipments. Our thermal engineering lab instruments are constructed from premium components and come with the newest features and technology at the most affordable prices. In many engineering schools, colleges, universities, vocational training facilities, enterprises, and government agencies across the country, we are the most recommended provider of thermal engineering lab equipment. We have axial flow turbine test beds, distributor ignition system trainers, cruise control trainers, coil-on-plug ignition system trainers, exhaust gas calorimeters, and other equipment in our thermal engineering lab.

ENGINE CUT SECTION MODELS - ELSHADDAI –
THR– 001

Two Stroke Cut Section Model : Single cylinder 2 stroke petrol engine for plotting port timing diagram

Four Stroke Cut Section Model : Single cylinder 4 stroke diesel engine for plotting valve timing diagram

SINGLE CYLINDER 4 STROKE DIESEL ENGINE TEST RIG (SLOW SPEED ENGINE) - ELSHADDAI –THR– 002

To carry out the following experiments

Performance Test

Heat Balance Test

Retardation Test

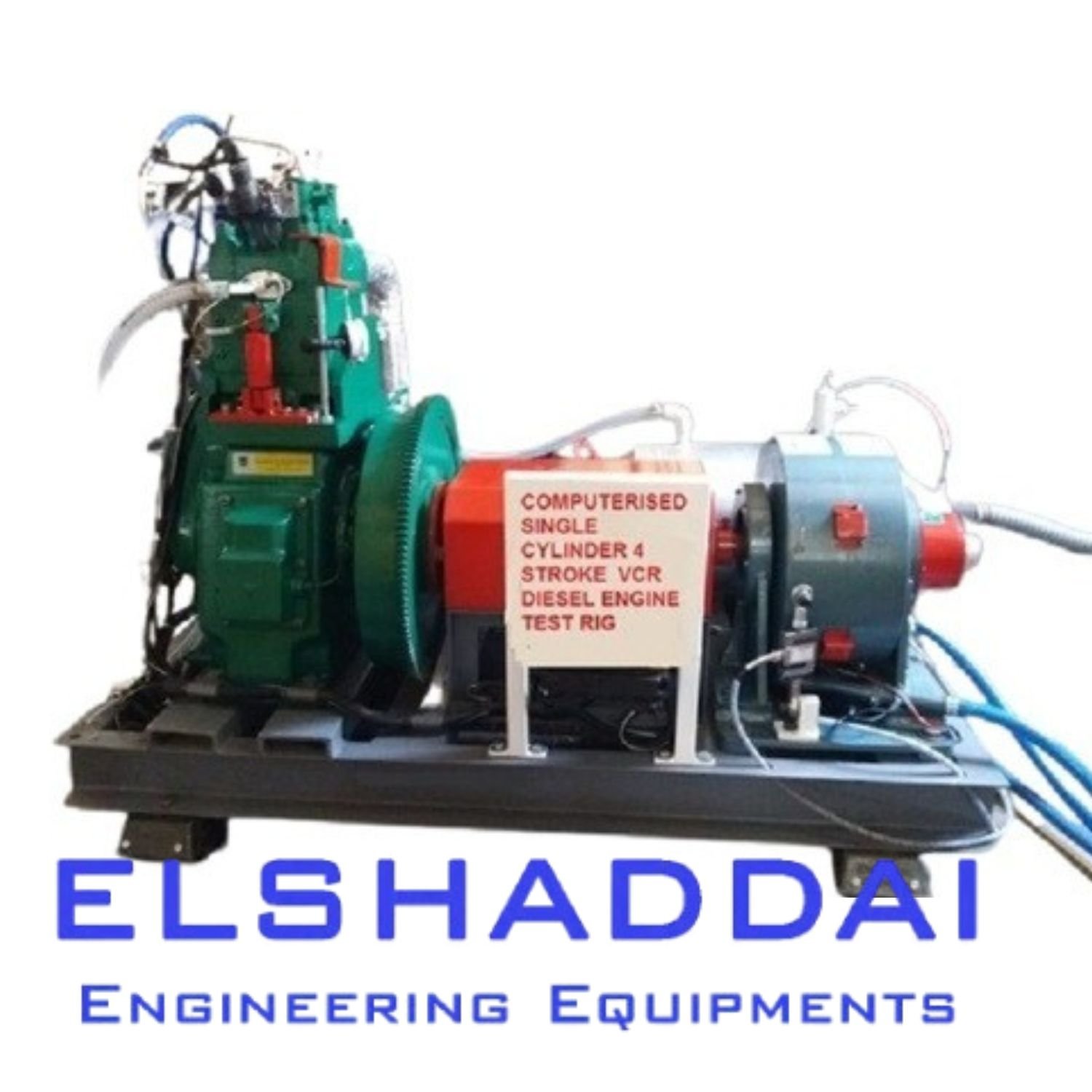

Variable compression ratio diesel engine test rig - ELSHADDAI –THR– 003

The setup consists of single cylinder, four stroke, VCR (Variable Compression Ratio) Diesel engine connected to eddy current type dynamometer for loading. The compression ratio can be changed without stopping the engine and without altering the combustion chamber

Variable compression ratio Petrol engine test rig - ELSHADDAI –THR– 004

The setup consists of single cylinder, four stroke, VCR (Variable Compression Ratio) Petrol engine connected to eddy current type dynamometer for loading. The compression ratio can be changed without stopping the engine and without altering the combustion chamber

DIESEL ENGINE TEST RIG -ELSHADDAI –THR– 005

Performance Test

Heat Balance Test

Engine: 5 HP at 1500 RPM coupled with loading device on a common base plate.

MULTI CYLINDER PETROL ENGINE TEST RIG -ELSHADDAI –THR– 006

To carry out the following experiments, Experiment to be performed: Morse Test.

Engine: 10HP at 1500RPM coupled with loading device on a common base plate.

Different Types of Loading:

Rope Brake Dynamometer Hydraulic Dynamometer Electrical Dynamometer

SINGLE CYLINDER 4 STROKE AIR COOLED PETROL ENGINE TEST RIG -ELSHADDAI –THR– 007

To carry out the following experiments

Different Types of Loading:

Performance Test Rope Brake Dynamometer Electrical Dynamometer

DATA ACQUISITION SYSTEM -ELSHADDAI –
THR– 008

The engine analysis is done using a computer based data acquisition system consisting of 9, 10, 11 channel data logger with all necessary sensors. The data logger is a microcontroller based high speed scanner specially designed for engine analysis and full fledged software will be provided to log the data, tabulating, calculating all efficiencies and plotting graph.

EXHAUST GAS ANALYSER -ELSHADDAI –
THR– 009

This product is used in various industry like automobile, petrochemical and food industry for analyzing exhaust gas from the fuel.

SMOKE METER -ELSHADDAI –
THR– 010

We are offering Diesel and Petrol Smoke Meter to the clients used for vehicles in work stations

Steam Boiler With Turbine Set -ELSHADDAI –
THR– 011

Fire Tube

Capacity : 300 Kgs/Hr

Max.Pressure: 6 Bar

Working Pressure: 3 Bar
